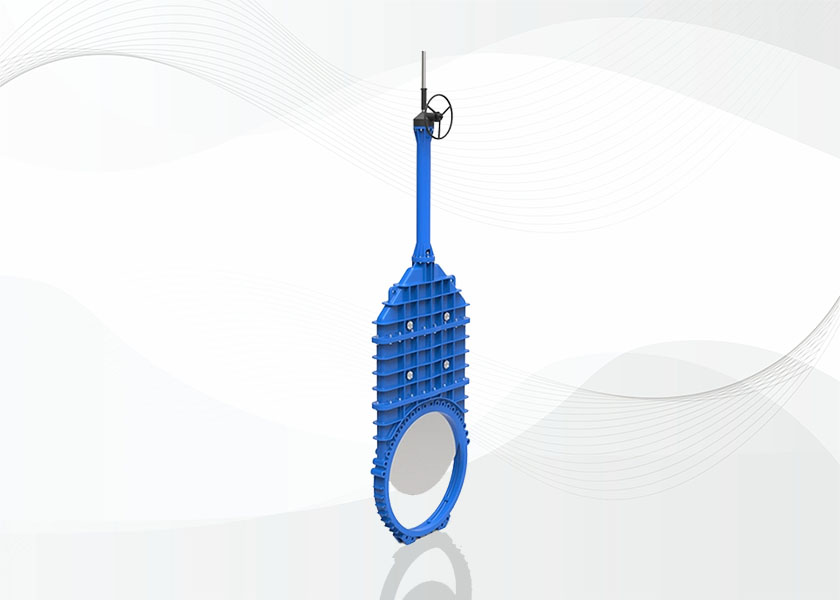

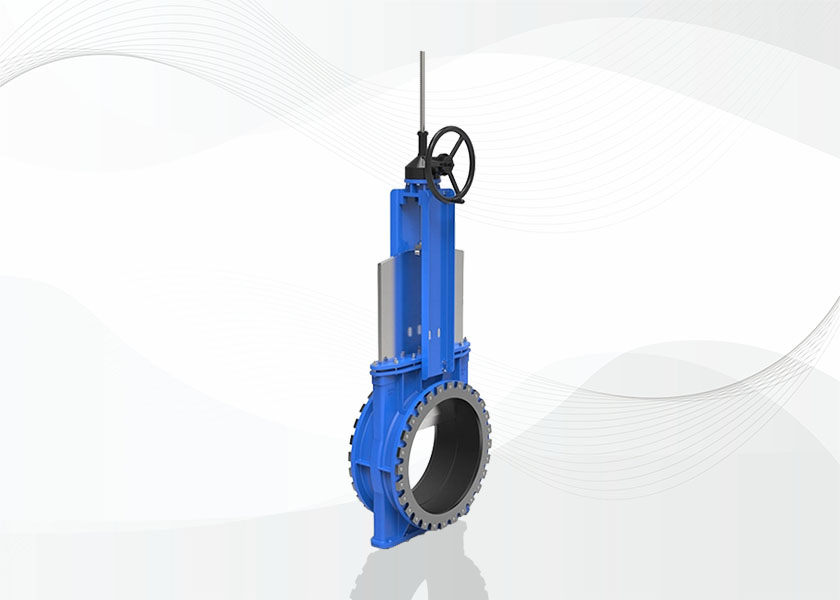

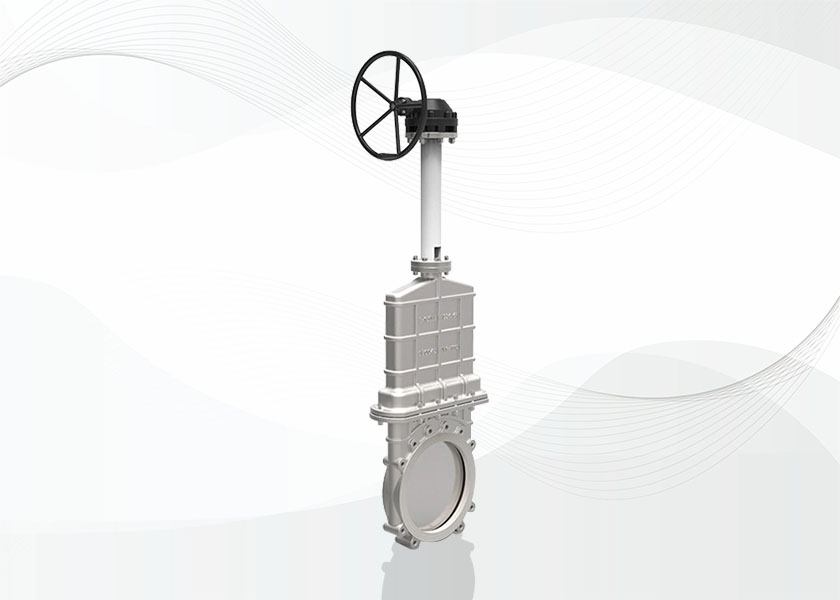

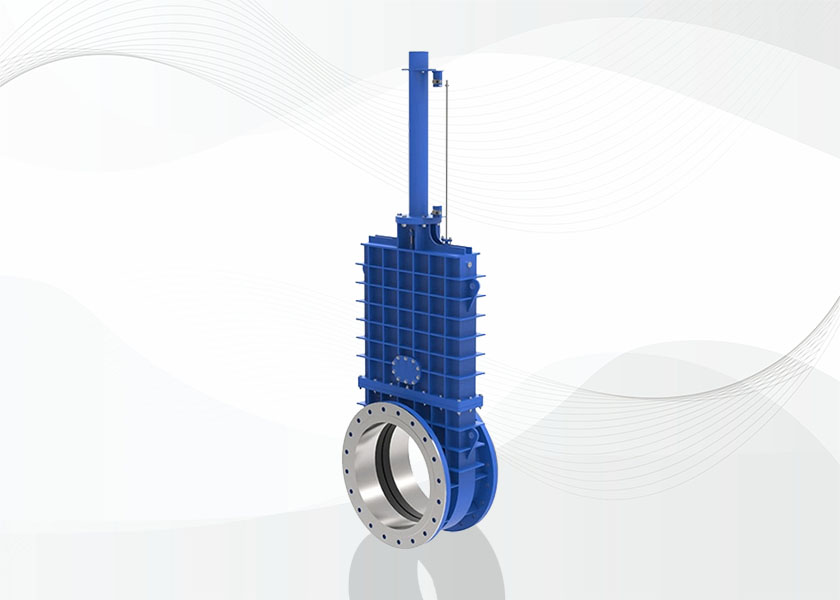

Model:LYZ73X/LYLZ73X
Working Pressure:
DN50-DN100 16bar
DN125-DN200 10bar
DN250-DN400 7bar
DN450-DN600 5bar
DN650-DN750 4bar
DN800-DN900 3bar
DN1000 2bar
DN1100-DN1400 2bar
Design Standard:MSS SP-81
Flange Standard:DIN PN10,PN16,150LB,JIS 10K, TABLE E/D
Face to Face:MSS SP-81
Testing Standard:API-598
Operation:handwheel,electric,pneumatic,hydraulic,sprocket,electro-hydraulic,gear
Main Material:F55, F53, 2205, CF3M, CF8M, CF8, WCB, GGG40
Disc Material:F55, F53, 2205, SS310, SS316L, SS316, SS304
Sealing Material:EPDM, FKM, NBR, PTFE
Packing:high-water-based rubber packing graphite wheel
Applicable Medium:Applicable for coal in power plant, slag discharge, sewage treatment, food, paper making, medicine, petroleum and chemical industry, water, Oil, steam, connecting or cutting grout, gold powder, ores, slag, coal, pulp, wood pulp, tailings, fibers, dust, chemicals, sewage treatment, sedimentation tanks, asphalt, bunker export, cereals, slaughter plant waste and other media.
